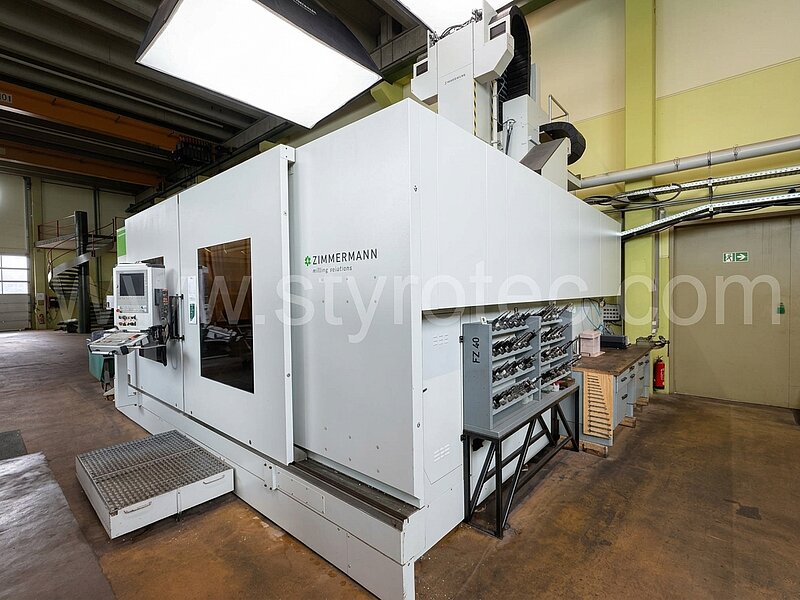

Zimmermann FZ40c 2016, 5-axis

First installation: 2016

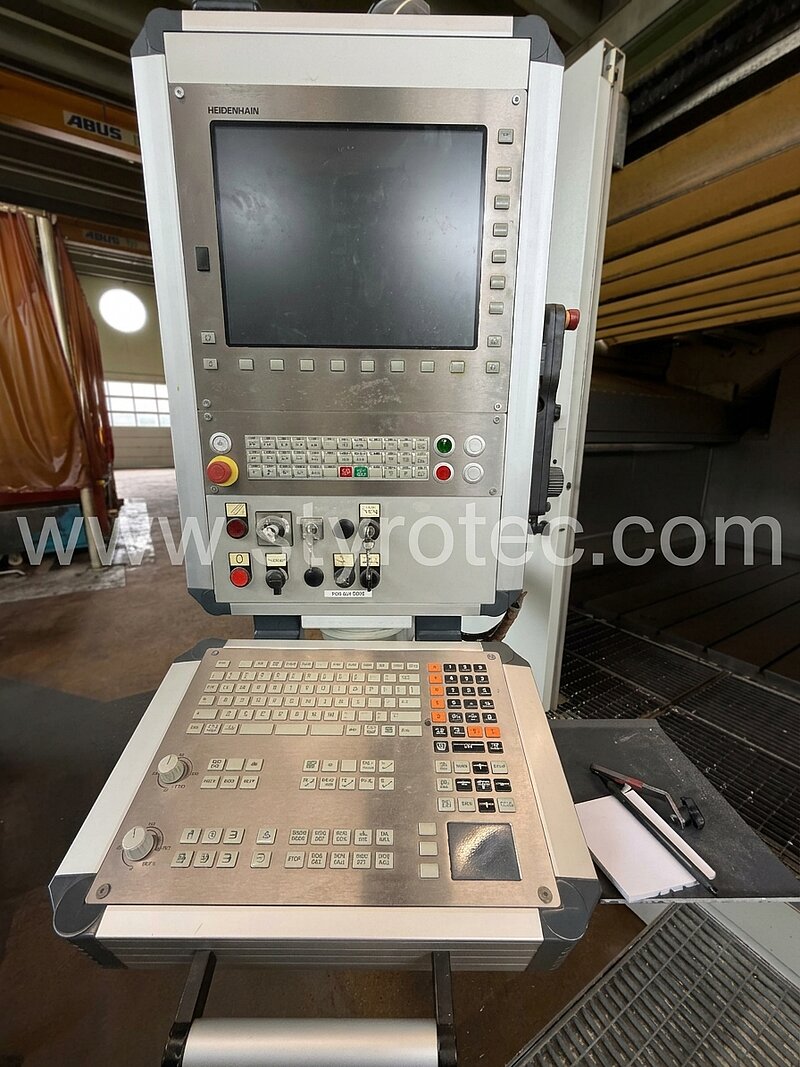

Control: Heidenhain iTNC530 with handheld HR520

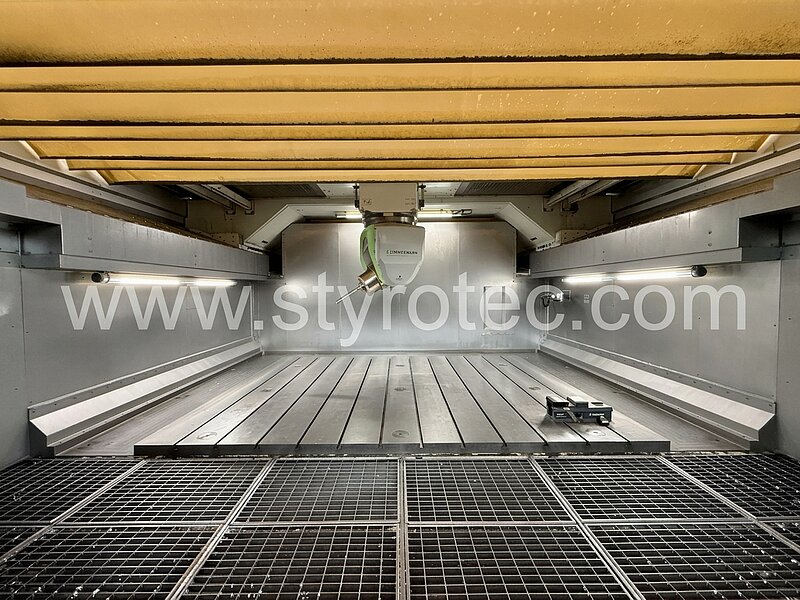

Machine table/bed: 2.500 x 3.250 x 600 mm / 18H12 250mm

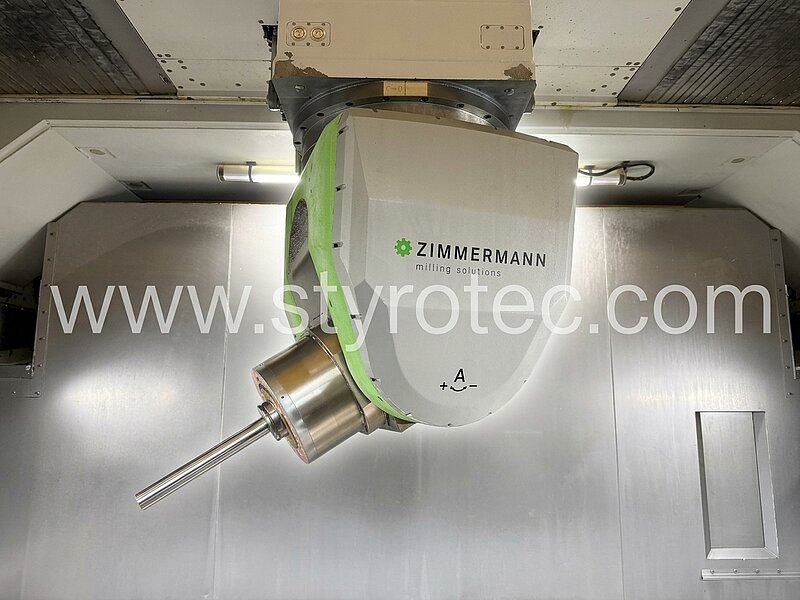

2-axis milling head VH60
Power: 63 kW
Speed: max. 15.000 U/min
Torque: 300 Nm
Clamping: HSK100A

Drive linear axis
Speed X/Y/Z-axis: up to 20 m/min
acceleration X/Y/Z-axis: up to 1,5 m/s²

Electrical parameters
Power: 190 kVa
Fuse: 315 A

Dimensions
Space: 10.00 x 7.000 x 5.900 mm
Weight: ca. 65.000 kg

Accessories:
- portal water cooling
- cooling liquid for wet milling with bandfilter 1.500l
- automatic tool changer 50x
- automatic roof cover
- chips conveyor
- Keller oil-mist exhaust system

Optional against surcharge:
- BLUM laser tool measurement
- Renishaw RMP60

Fully functional, still under power, can be visited until end of November 2026
