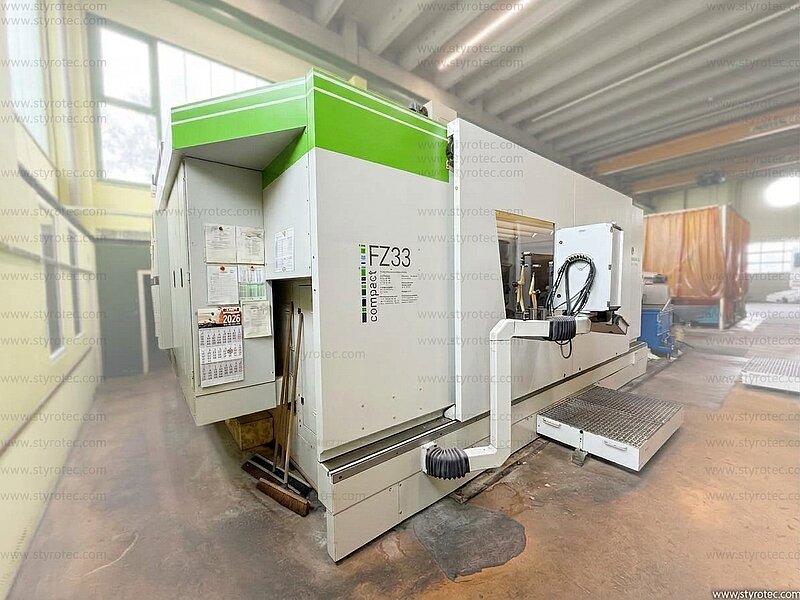

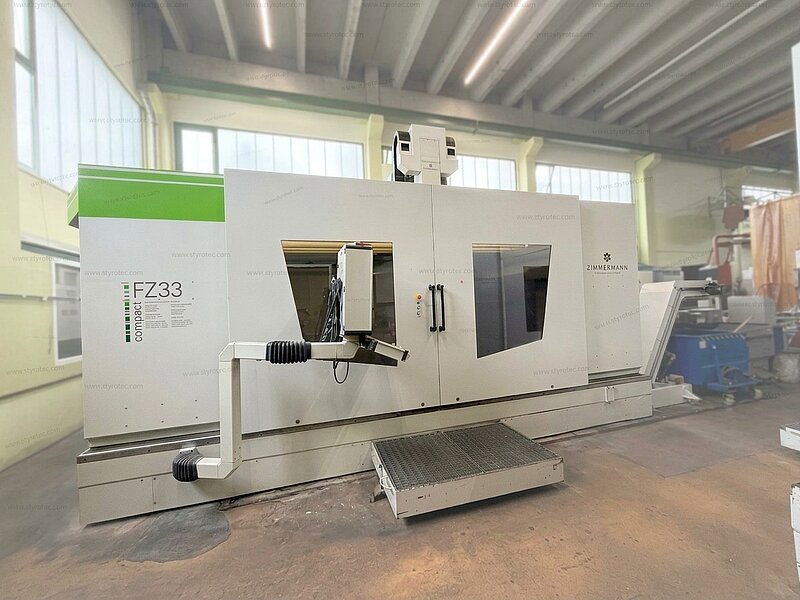

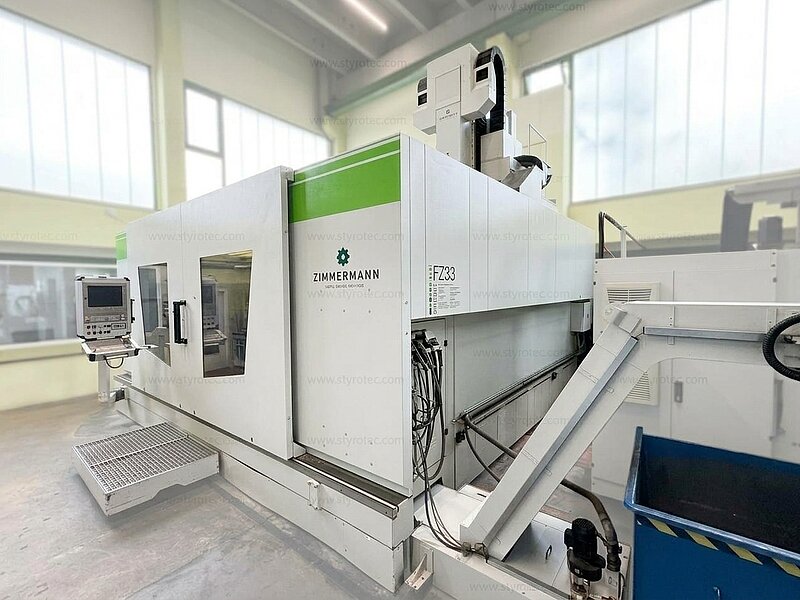

Portal milling machine, Zimmermann FZ33c, 2015

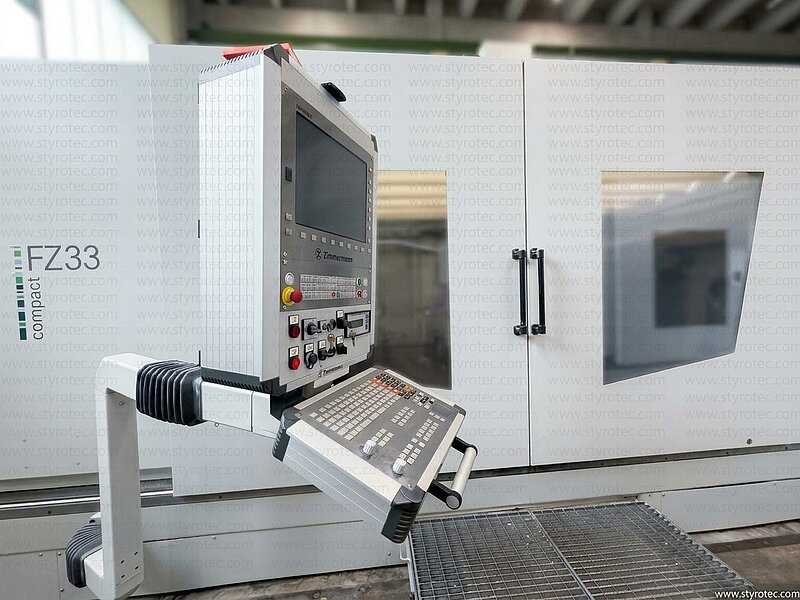

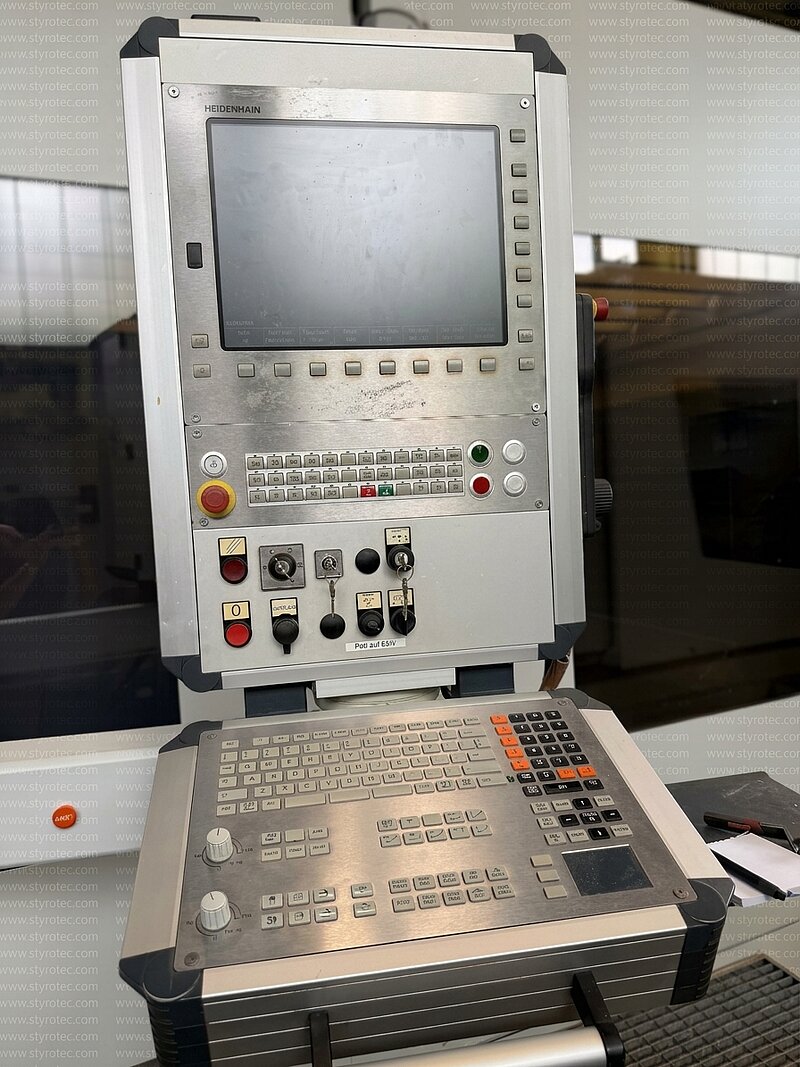

Control: Heidenhain iTNC 530 HSCI inlcuding HR 520 Handwheel

Clamping table/bed
clamping area: 2.500 x 3.250 x 600 mm
clamping: 18H12 / 250 mm t-slots

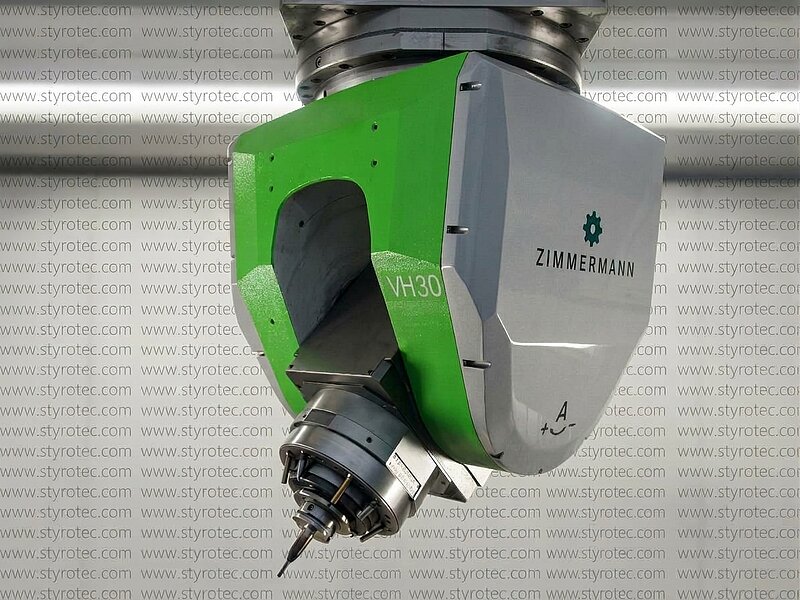

Milling head VH30
spindle power: 60 kW
spindle speed: max. 22.000 min-1
torque: 95 Nm
Tool clamping: HSK 63A
clamping: hydraulic
Coolant injection: outside and inside
blowing air: outside

drive linear axis:
drive speed X-, Y-, Z-axis: up to 60 m/min
acceleration X-, Y-, Z-axis: up to 5 m/s2

Connection data
power: 190 kVa
fuse: ca. 315 A

Dimensions
required area: about 10.000 x 7.000 x 5.700 mm
weight: ca. 63.000 kg

Accessories
- cooling liquid for wet milling with band filter system 1.500l
- 50 pcs. tool changer
- roof cover for working area
- chip conveyer
- Keller oil-mist exhaust

Optional against surcharge:
- BLUM Laser
- Renishaw RMP60

The machine is available immediatly and also it is possible to look at it live until November 2026
